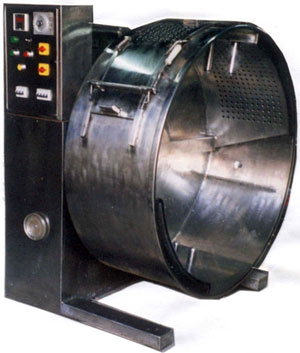

Leather Drums
FEATURES :
Machine completely assembled ready for connection bodyparts made
of SS 304 and drum of SS316L PERSPEX Glass to observe process
with JK Colors "Z" TYPE circulating system to built in heater in
box which is fixed to the axial of the drum. Hopper to add
water, chemicals and bottom Drain value .Continous auto timer and
other for manual operation automatic temperature. Sliding door,Variable stepless speed drive from SEW Germany Suitable to
work at any process. All electrical Control panel are as per "CE"MARK
fittings.
|
MODEL |
|
8040z |
1040z |
1050z |
1250Z |
1260Z |
1450Z |
1460Z |
|
Drum dia. |
mm |
800 |
1000 |
1000 |
1200 |
1200 |
1400 |
1400 |
|
Drum width |
mm |
400 |
400 |
500 |
500 |
600 |
500 |
600 |
|
Speed rotation |
rpm |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
|
Drum volume |
ltr |
200 |
315 |
390 |
565 |
680 |
769 |
920 |
|
Min.liquid |
ltr |
5
|
6 |
6 |
7 |
7 |
8 |
8 |
|
Cap.Shaved wt |
kgs |
20 |
32 |
40 |
58 |
70 |
78 |
92 |
|
Motor power |
kw |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Heating power |
kw |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
|
Length |
mm |
1000 |
1000 |
1100 |
1100 |
1200 |
1200 |
1300 |
|
Breath |
mm |
900 |
1000 |
1000 |
1200 |
1200 |
1400 |
1400 |
|
Height |
mm |
1500 |
1600 |
1600 |
1700 |
1700 |
1800 |
1800 |
|
Weight |
kgs |
400 |
500 |
500 |
600 |
600 |
700 |
700 |
|
