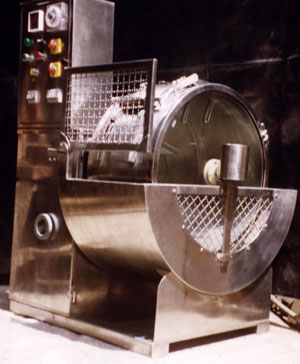

Leather Experimental Drum 'I' Series
FEATURES :
This experimental drum is different from our other model which
is having indirect electrical water/oil heating system allows to
test with or without float always temperature control . The drum
is manufactured in stainless steel 316,with glass shield on one
side for process viewing .The sliding door with perforated
section makes the loading and washing very easy.This drum is
driven by
SEW EURODRIVE GERMANY GEARED MOTOR WITH SEW SPEED INVERTER
CONTROL.
The heater is immersed in a tank with GRUNDFOS pump for
circulation of water/oil in the double jacketed drum.The drum
can work upto 60/100 degrees centigrate with clock anti-clock
rotation with time control.
This drum
washing machine can also be used for TEXTILE APPLICATION.
CE
cerification is possible for the machine.
|
MODEL |
4020 I |
6030 I |
8035 I |
1040 I |
1050 I |
1250 I |
1260 I |
1450 I |
1460 I |
|
DIAMETER
(mm) |
400 |
600 |
800 |
1000 |
1000 |
1200 |
1200 |
1400 |
1400 |
|
WIDTH
(mm) |
200 |
300 |
350 |
400 |
500 |
500 |
600 |
500 |
600 |
|
CAPACITY
(litre) |
25 |
85 |
150 |
315 |
390 |
565 |
680 |
769 |
920 |
|
SHAVED
WEIGHT
(kg) |
2 |
7 |
12 |
25 |
32 |
45 |
54 |
62 |
74 |
|
DRUM
SPEED
(Rpm) |
5/50 |
8/40 |
8/40 |
7/35 |
6/30 |
6/30 |
6/30 |
5/25 |
5/25 |
|
MOTOR
POWER
(kW) |
0.1 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
HEATING
(kW) |
1 |
3 |
3 |
4.5 |
4.5 |
4.5 |
4.5 |
6 |
6 |
|
