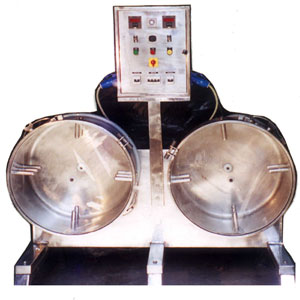

Leather Lab Dual Experimental Drum

Features

  • Stainless Steel drum AISI 316 L grade

  • Plexiglass to observe process

  • Seperate heating pot to add chemical during process

  • Float circulation in Heating Pot where pH can be checked

  • Heater ON only Clockwise direction

  • Manually controlled Clock and Anticlock rotation

  • Automatic Temperature control

  • Timer for total process time with alarm

  • Variable speed control

MODEL
DRUM DIAMETER
DRUM WIDTH
DRUM VOLUME IN EACH DRUM
CAPACITY SHAVED WT
MOTOR POWER
HEATING POWER IN EACH DRUM
MIN
MAX
   6030 D

 8035 D

1040 D

  600 mm

  800 mm

1000 mm

 300 mm

350 mm

400 mm

 85 ltrs

176 ltrs

315 ltrs

1 kg

5 kg

8 kg

   6 kg

16 kg

32 kg

0.75 kw

1.50 kw

2.20 kw

1.5 kw

3.0 kw

4.5 kw
