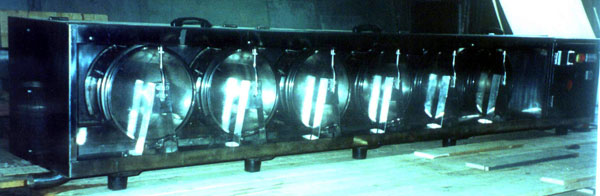

PFI Colour Matching Machine
We supply the
PFI leather colour matching machine with 2,4 or 6 drums as
required.The drums are fabricated out of SS 316L grade stainless
steel,driven commonly to the variable speed drive motor the
temperature is common to all drums with electrical air heating
having automatic temperature.Motor can be control with a timer
and alarm for regular intervals.

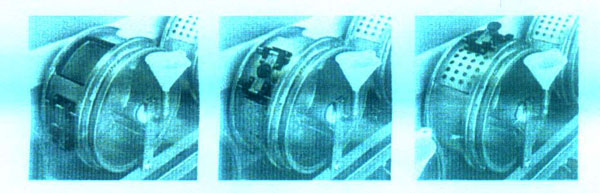

Drum can be rotate clockas well as anti-clock wise with a manual
rotary.Loading of leather is through the door which can be open
and closed easily and draining is possible with the perforated
section in a carefully designed sliding door.This machine is
designed beautifully to carry out comparitive trails on all WET
end chemicals like RETANNING,DYEINGAND FAT LIQUORING.The process
can be viewed from the plexiglass on the drum also feeding of
chemical can be done from the feed funnel without stopping the
drum.
The PFI is the state of the art in your laboratory.
|
Model |
R2 |
R3 |
R4 |
|
DRUM
DIAMETER mm |
300 |
300 |
300 |
|
DRUM
WIDTH mm |
150 |
150 |
150 |
|
DRUM
VOLUME ltr. |
10 |
10 |
10 |
|
CAP.SHAVED WT. kg |
1x2 |
1x4 |
1x6 |
|
DRUM
SPEED rpm |
4-40 |
4-40 |
4-40 |
|
MOTOR
POWER kw |
0.37 |
0.55 |
0.75 |
|
HEATING POWER kw |
1 |
2 |
3 |
|
LENGTH
mm |
1400 |
2300 |
3200 |
|
DEPTH
mm |
650 |
650 |
650 |
|
HEIGHT
mm |
500 |
500 |
500 |
|
WEIGHT
kg |
260 |
340 |
420 |
|
